TOF Monitor - TOF3D | MIPM Mammendorfer Institut für Physik und Medizin GmbH

Acceleromyography (AMG) and Mechanomyography (MMG) combined in one device.

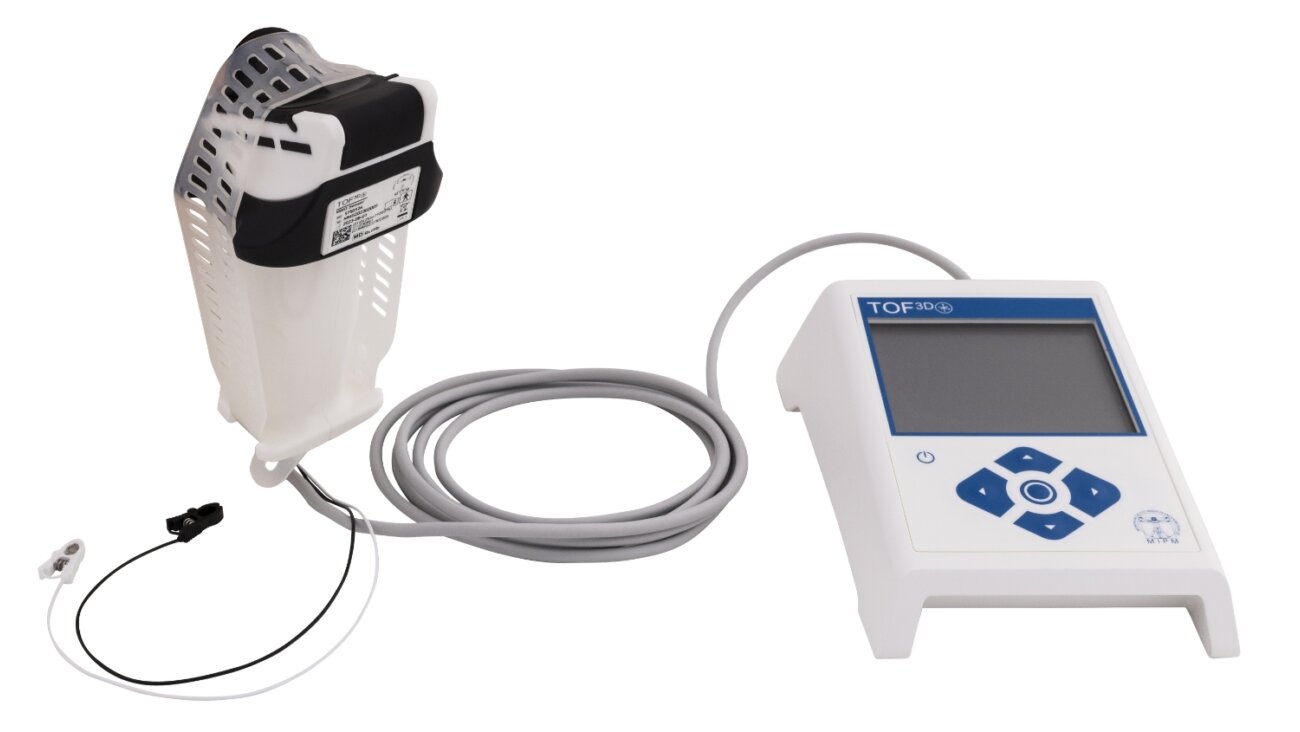

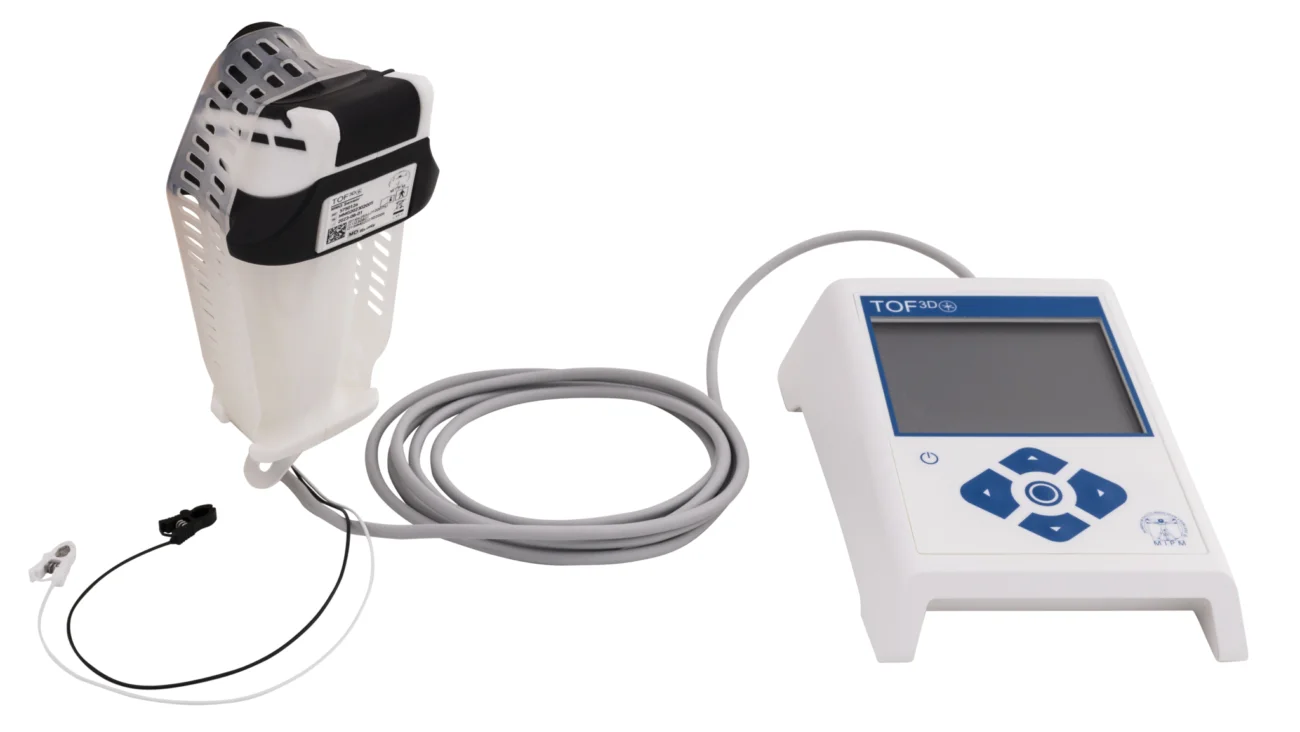

MIPM does the next step in neuromuscular monitoring. The monitor may be used with a tranducer based on acceleromyography (AMG) or alternatively a Mechanomyography sensor (MMG). Mechanomyography directly pics up the muscle force. A movement of the muscle is not necessary for the measurement. With the TOF^3D MMG sensor you can monitor your patient's neuromuscular blockade even when the patient positioning prevents AMG based measurements.

Technical features
- Various stimulation modes: TOF, PTC, TET, DBS, Single Twitch
- Battery operation: More than 1,500 hours continuous operation, Use of standard AA batteries
- 3-dimensional acceleration measurement (AMG) with transducer

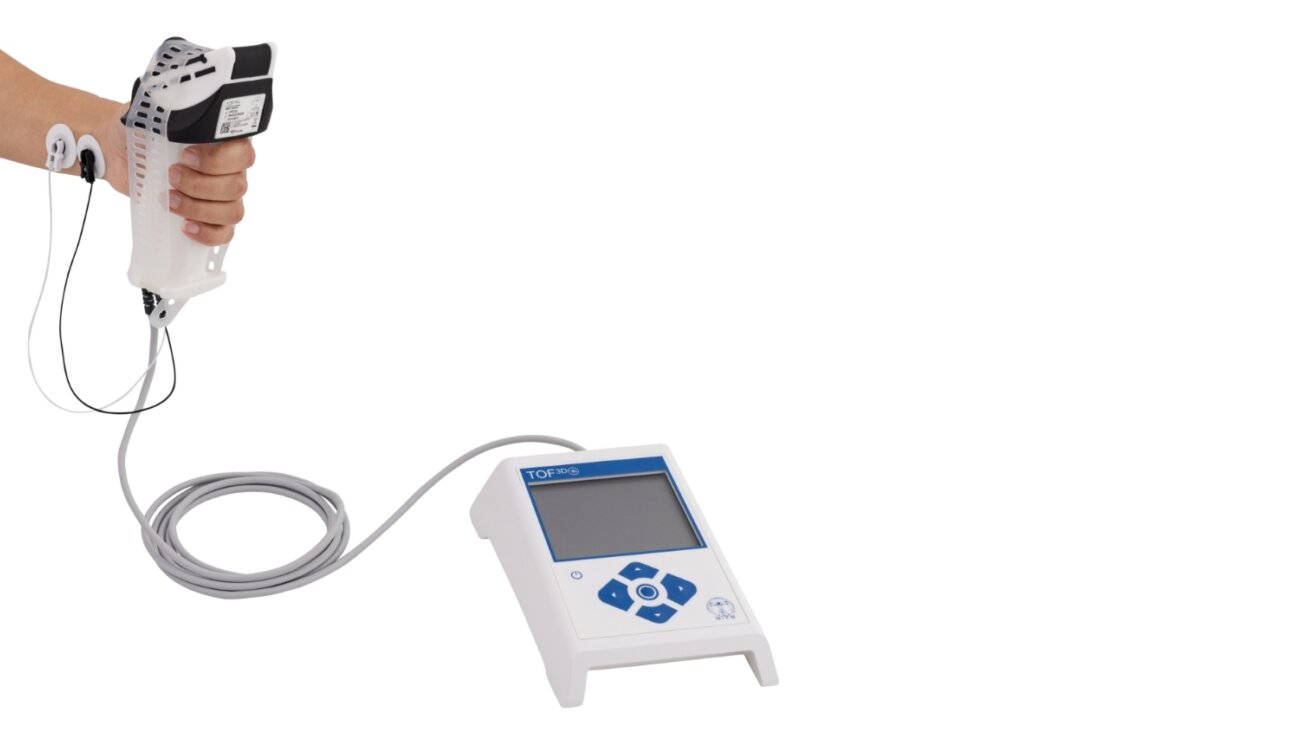

- Mechanomyography hand adapter (MMG) directly picks up the muscle force.
- Large 4.4 inch LCD display
- Integration to patient monitors and operation via patient monitors*
- Placement at the OR table, IV pole or standard rail
- Individual warning messages for lower and upper TOF limits
- Surface body temperature measurement
- Integrated trend memory can be downloaded to external devices or transfered to external devices.
*Depending on monitor model

Application

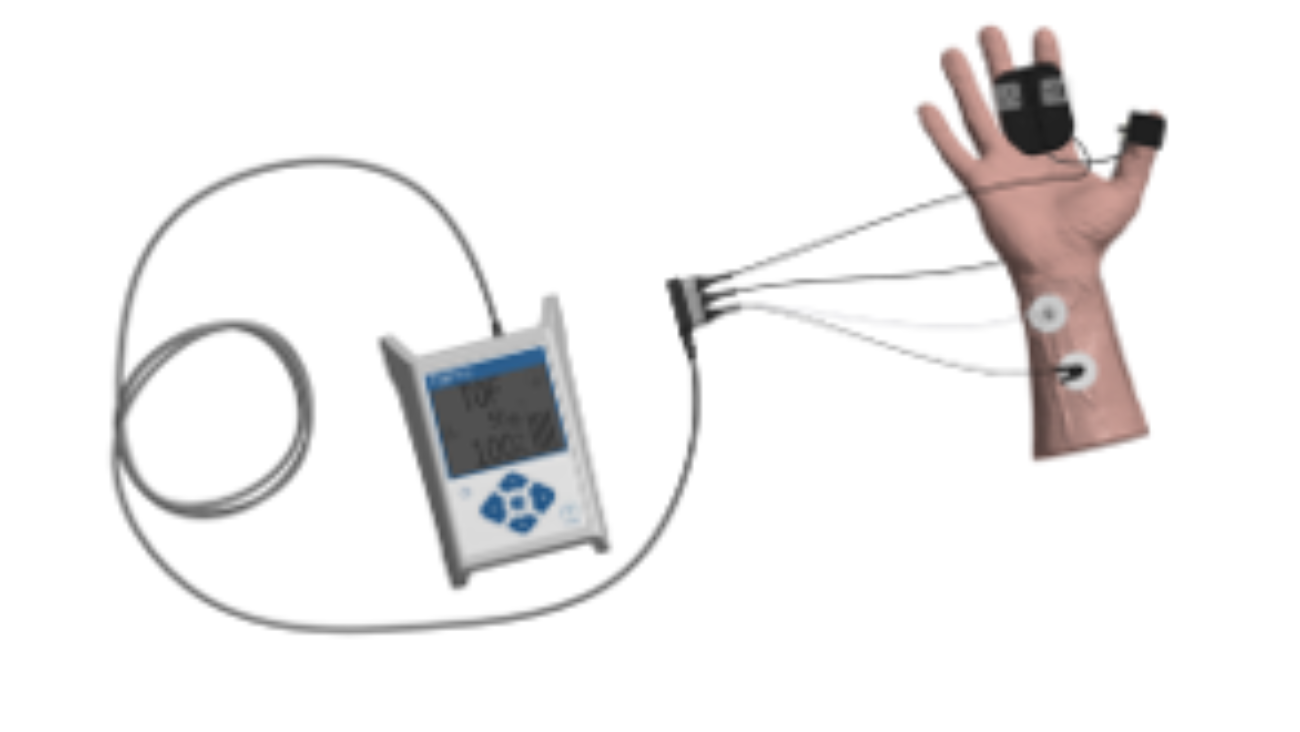

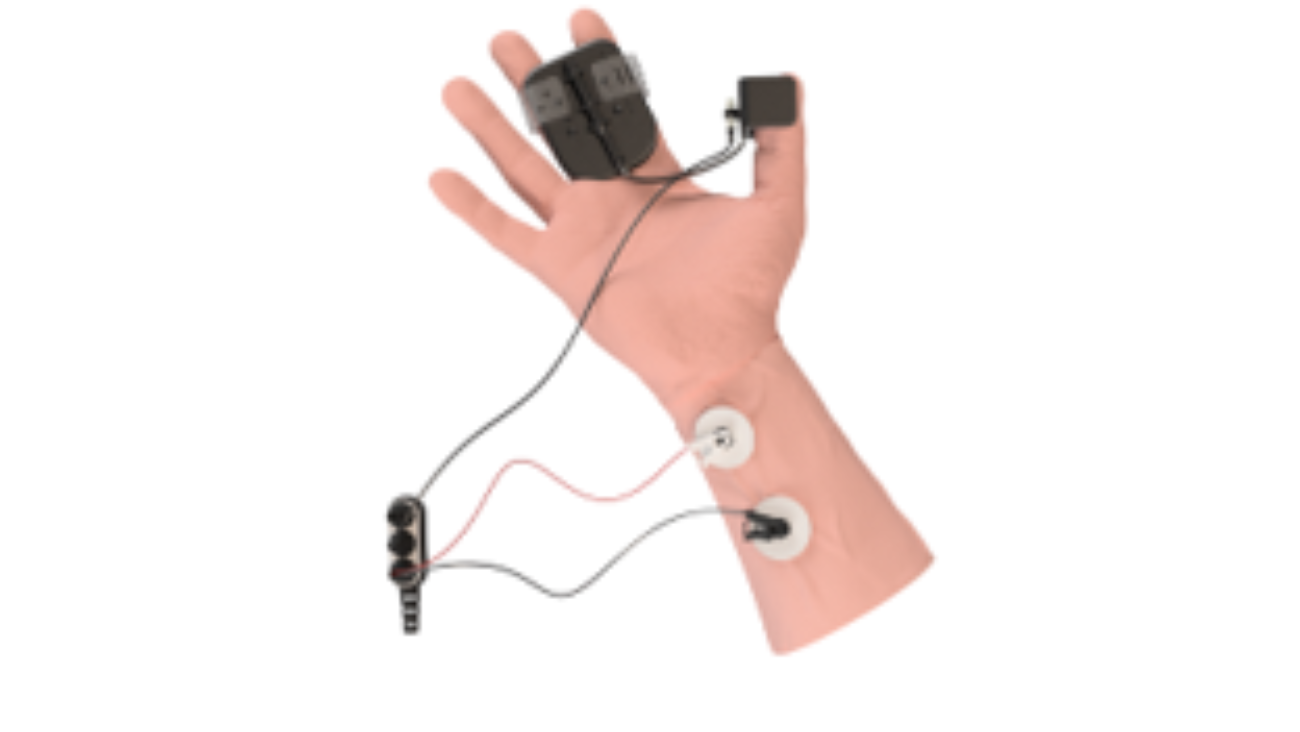

Simple application of all adhesive electrodes – reliable measurement!
- Use of standard electrodes
- AMG measurement at different points - Thumb, Eye, Foot
- MMG measurement on the thumb
